Systemd Timers: A Comprehensive Guide For Beginners

In this guide, you'll learn how to use systemd timers, explore their format, see practical examples, and use cases.

By the end, you'll have a solid understanding of how to use systemd timers.

What is a Systemd Timer?

A systemd timer is a unit file in the systemd that schedules tasks or services to run at specific times or intervals. It is similar to cron jobs but with some additional features and better integration with the systemd ecosystem.

It come with several advantages, including better logging, easier service integration, and good error handling.

Unlike cron, systemd timers offers the folowing.

1. Centralized management through systemctl for better logging and error tracking.
2. Deeper integration with systemd services.
3. Detailed logging through journalctl
4. More flexible and powerful scheduling options.

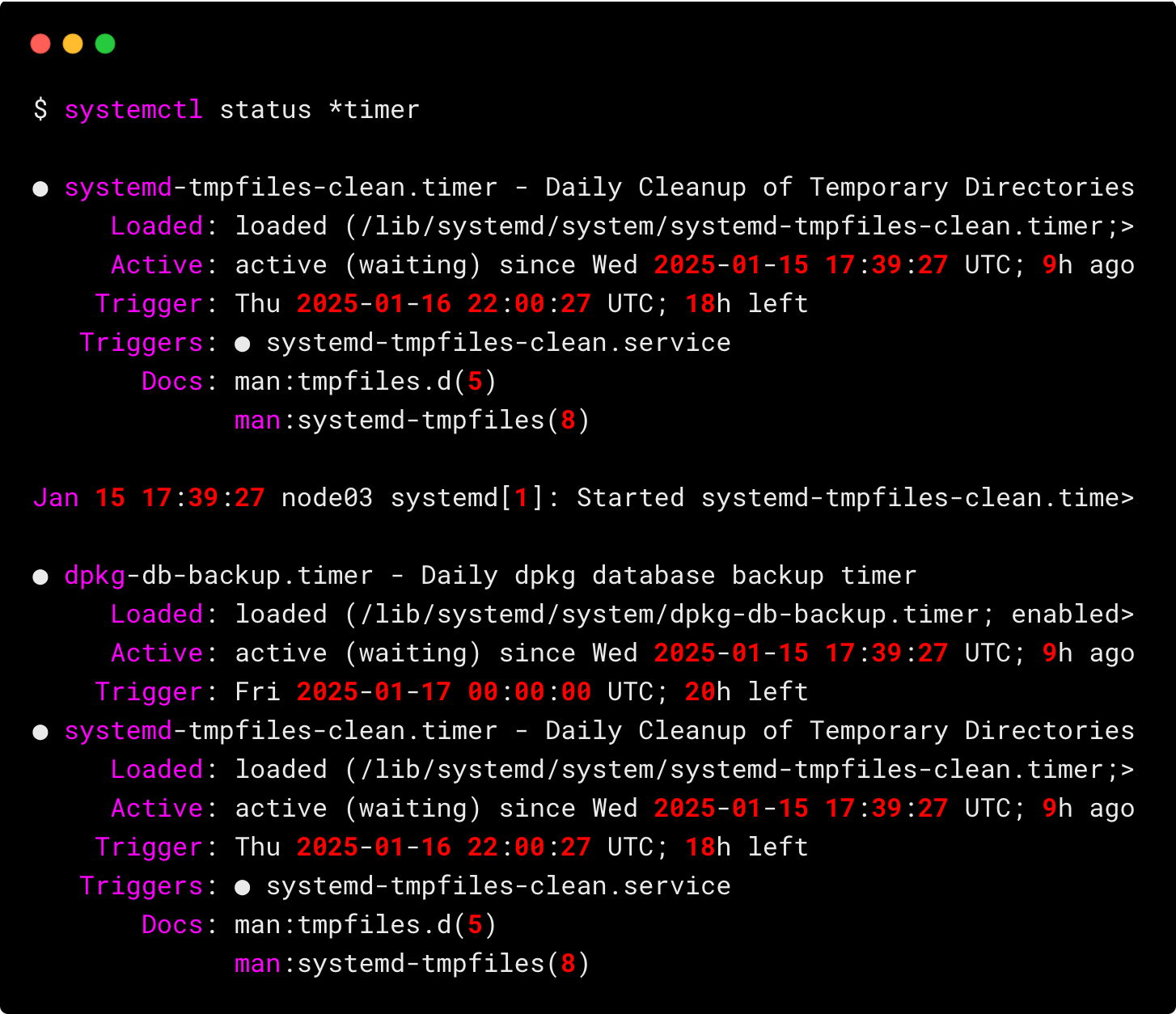

By default there will be some timers running on your system, run the following command to list all the available timers.

For example,systemd-tmpfiles-clean.timer to up old files in temporary directories like /tmp and /var/tmp based on the rules defined in tmpfiles.d.

systemctl status *timer

You will output as shown below.

How Systemd Timers Work?

Unlike cron, which uses a single file to schedule tasks, systemd timers use two key files, service and timer files.

• Timer File: Specifies when the task should run (e.g., daily, weekly, or at a specific time).
• Service File: Defines what the task is (the script or command to execute).

The timer file is connected to the service file, so the timer decides the schedule, and the service handles the actual work.

For example, if you want to run a backup script daily:

• You create a service file to define the script that will be executed.
• You create a timer file to set the schedule for running that service. (e.g., every day at midnight).

You can manage timers just like other services. Use commands like systemctl start, systemctl stop, systemctl enable, or systemctl status to control them.

Understanding Systemd Timer Expression

The general syntax follows this pattern:

* *-*-* *:*:*
│ │ │ │ │ │ │
│ │ │ │ │ │ └──── Seconds (0 - 59)
│ │ │ │ │ └────── Minutes (0 - 59)
│ │ │ │ └──────── Hours (0 - 24)
│ │ │ └────────── Day of Month (1 - 31)
│ │ └──────────── Month (1 - 12)
│ └────────────── Year
└──────────────── Day of Week (Sun - Sat)

In this * represents every, which means,

1. If you give the expression as * *-*-* *:*:* it will run every second of every day until you stop.
2. The first single * represents the day of the week, which is from Sunday to Saturday.
3. The second set *-*-* represents the data which means, year-month-day .
4. The third set *:*:* represents time hour:minute:second.

Understanding Systemd Timer Triggers

For systemd timers, you have many scheduling options to define when tasks should run.

These are broadly categorized into

1. Time-based triggers: These are relative timers that start counting from a specific event. They use the OnActiveSec, OnBootSec, OnStartupSec, OnUnitActiveSec, and OnUnitInactiveSec options. For example:
1. OnBootSec=1h means run 1 hour after the system boots
2. OnUnitActiveSec=1d means run 1 day after the service was last activated
3. OnActiveSec=30min means run 30 minutes after the timer itself was activated
1. Calendar-based triggers: These are more specific and work on predefined dates or recurring schedules, like running a task every day at midnight, every Monday at 9 AM, or even on the first day of each month. They are perfect for tasks that need to follow a fixed schedule. For example:
1. OnCalendar=Mon,Thu --* 16:00:00 runs every Monday and Thursday at 4 PM
2. OnCalendar=--* *:00:00 runs at the start of every hour
3. OnCalendar=--* 9..17:00:00 runs every hour from 9 AM to 5 PM

Here is a list of examples.

Systemd Timer Expression Examples

Now you have an idea about the systemd timer expression structure and triggers, let's look into some examples of how it is used.

Systemd Timer File

Now that we have the basics, lets look at systemd timer file.

A systemd timer file typically consists of three sections:

1. Unit - Description for the timer.
2. Timer - Specifies the schedule information.
3. Install - Specifies how the unit should be started and the target.

Here’s an example of a simple timer file:

[Unit]
Description=Description of what this timer do

[Timer]
OnBootSec=10min
OnUnitActiveSec=1h
OnCalendar=Mon *-*-* 10:10:*
Unit=test.service
Persistent=true

[Install]
WantedBy=multi-user.target

• The OnBootSec starts the timer at the specified time after the system starts, in the above file, it is 10 min.
• OnUnitActiveSec triggers the timer in the specified time after the service is started. In the above file it's 1 hour which means it runs every 1 hour.
• The OnCalendar starts the timer at the specified time, in the above file, it is every Monday at 10.10.
• Unit specifies the service that has to be triggered by this timer.
• Persistent=true runs missed runs when the system comes back up
• WantedBy ensures the timer starts automatically at system boot by linking it to the multi-user.target.

To know more about the timer configuration, you can make use of the man command.

$ man systemd.timer

Systemd Service File

Now, lets look at the systemd service file.

Like systemd timer file, the systemd service file also consists of three sections:

1. Unit - Description for the timer.
2. Service - Defines what it should do.
3. Install - Specifies how the unit should be started and the target.

Here’s an example of a simple service file:

[Unit]
Description=Description of what service file do

[Service]
ExecStart=/usr/local/bin/test.sh
Restart=on-failure
RestartSec=5s
StartLimitInterval=10min
StartLimitBurst=2

[Install]
WantedBy=multi-user.target

• ExecStart: Command or script that need to be executed.
• Restart: Tells when to restart, it can be on-failure or always.
• RestartSec: Time to wait before starting the next restart.
• StartLimitInterval: Wait a specified time for restart if the max restart limit has been reached.
• StartLimitBurst: Maximum restart attempts in the interval.

For example, If the service fails while running the specified file, it will try to restart 2 times.

If the restart limit has been reached, it will wait for 10 minutes before triggering another restart. After this period, the restart counter resets, allowing the service to try again.

You can use the man command to know more about the timer configuration.

$ man systemd.service

Setting Up a Systemd Timer (Practical Example)

Let's create a system timer that writes in a file every 2 minutes from Monday to Friday.

Follow these steps to create and test a systemd timer:

Step 1: Create a Script

First, create a script named backup.sh that your systemd timer needs to run.

sudo vi /usr/local/bin/backup.sh

Add the following content.

#!/bin/bash
echo "$(date '+%Y-%m-%d %H:%M:%S') Backup Completed!" >> /tmp/backup_output.log

This file will write Backup Completed! in the file /tmp/backup_output.log with time and data.

Make the script backup.sh executable.

sudo chmod +x /usr/local/bin/backup.sh

Step 2: Create a Service File

Define the task you want to execute in a service file. Let’s create a file called backup.service.

sudo vi /etc/systemd/system/backup.service

Add the following content.

[Unit]
Description=Run Backup Script

[Service]
ExecStart=/usr/local/bin/backup.sh
Restart=on-failure
RestartSec=10s
StartLimitInterval=5min
StartLimitBurst=3

[Install]
WantedBy=multi-user.target

In this, we have added the restart functions, if the service exits with a non-zero exit code, it will attempt to restart up to the specified number of times within the defined interval.

Step 3: Create a Timer File

Now, create a timer file to schedule the service. Save it as backup.timer.

sudo vi /etc/systemd/system/backup.timer

Add the following content.

[Unit]
Description="Take backup every 2 minutes"

[Timer]
OnCalendar=Mon..Fri *-*-* *:0/2:00
Unit=backup.service
Persistent=true

[Install]
WantedBy=multi-user.target

The Mon..Fri *-*-* *:0/2:00 expression triggers the run every 2 minutes from Monday to Friday.

Also, the Persistent=true expression makes sure the missed runs are executed on the next system restart.

Step 4: Enable and Start the Timer

Reload systemd to recognize the new files.

sudo systemctl daemon-reload

Enable and start the timer.

sudo systemctl enable --now backup.timer

Step 5: Verify the Timer

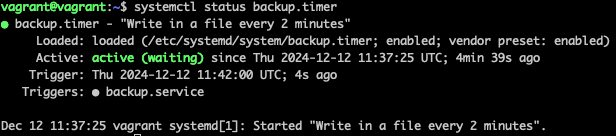

Check the status of the timer to ensure it’s active.

sudo systemctl status backup.timer

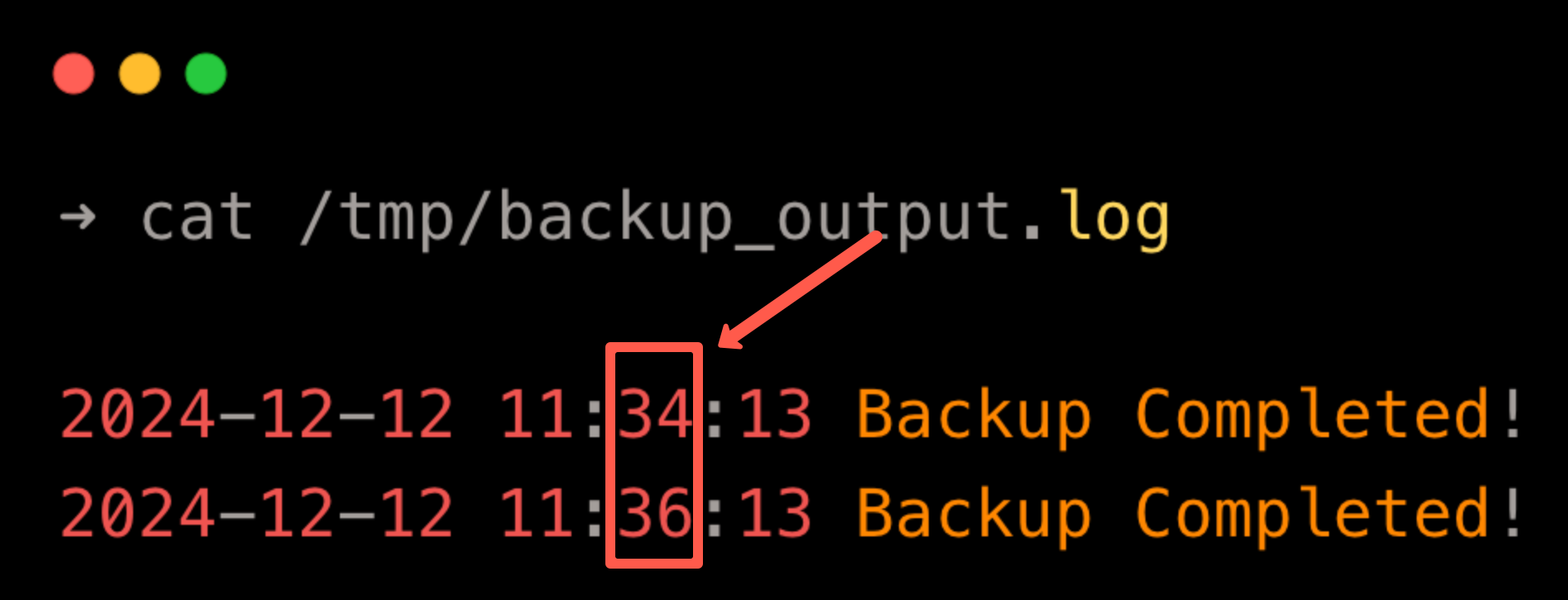

After 2 minutes, check the /tmp/backup_output.log if timer writing every 2 minutes.

You can see that it's written every 2 minutes in the file.

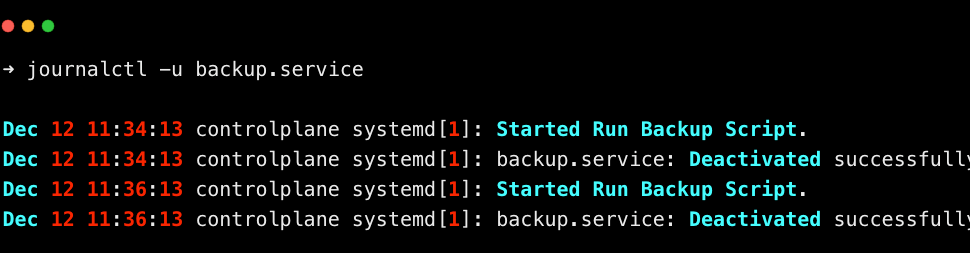

Let's check the logs of the backup.service to understand its output.

journalctl -u backup.service

The log shows that the backup.service executes the backup script every two minutes and stops successfully after completing its task.

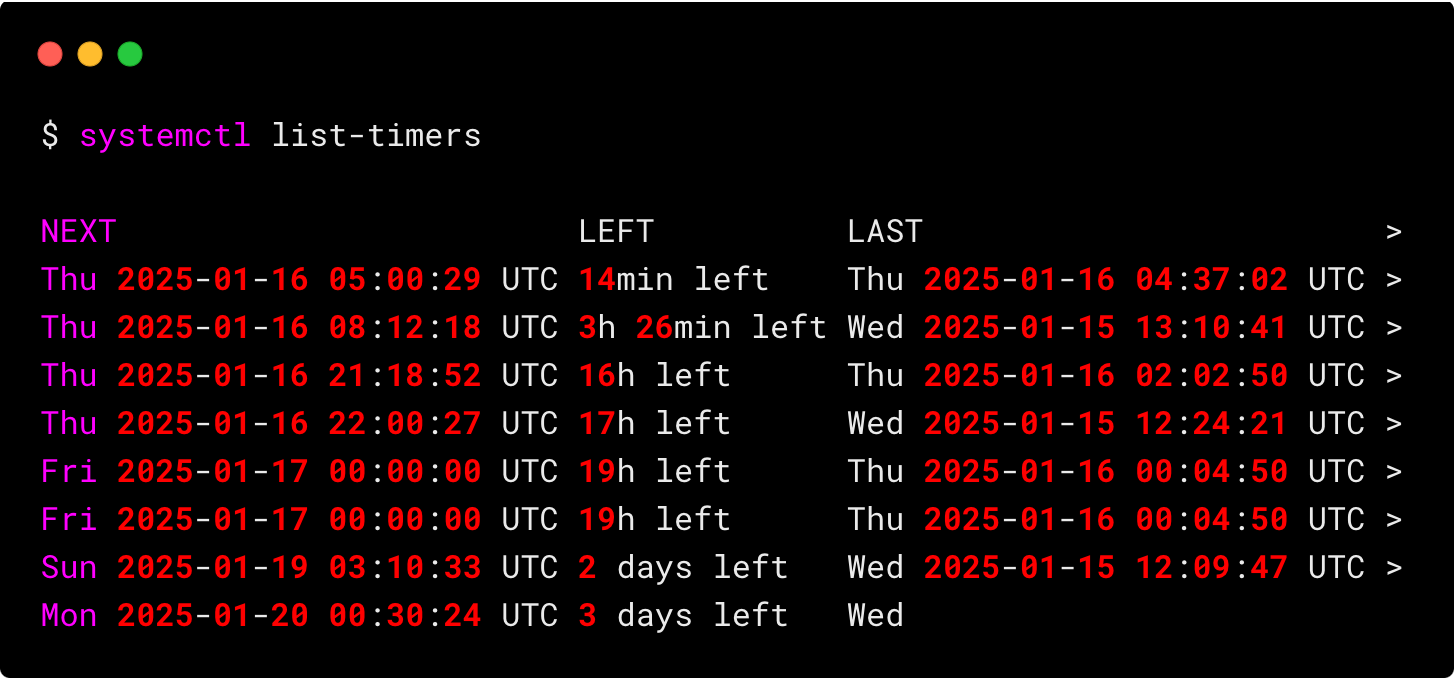

You can also see the list of scheduled timers.

systemctl list-timers

You can see all the running timers, the time left for the next run, etc.

Step 6: Cleaning up the Timer

Once the timer is no longer needed, you can either stop the timer or remove the timer.

If you want to stop the timer, run the following command.

sudo systemctl stop backup.timer

And, if you are going to remove the timer, remove the backup.timer and backup.service file and run the daemon-reload command.

sudo rm /etc/systemd/system/backup.timer

sudo rm /etc/systemd/system/backup.service

Troubleshooting Systemd Timers

If your timer isn’t working as expected, follow these steps:

Reload Systemd if you make changes to the timer or service file.

sudo systemctl daemon-reload

Run the service directly to ensure it works:

sudo systemctl start <service-name>.service

View Logs:

journalctl -u <timer-name>.service

Check Timer Status:

sudo systemctl status <timer-name>.timer

Advantages of Systemd Timers Over Cron

1. Use journalctl to view logs for both timers and services.
2. With Persistent=true, timers run missed tasks after a system reboot.
3. Timer and service statuses are easy to inspect with systemctl status.
4. Timers integrate directly with systemd services, simplifying dependency management.
5. Use OnCalendar for intuitive time expressions or relative schedules such as OnBootSec and OnUnitActiveSec.

Real-World Use Cases

Here are common scenarios where systemd timers shine:

• Used for regular linux backups.
• Automated System Maintenance tasks like log rotation, disk cleanup, and updates.
• Run health checks or monitoring scripts at intervals for monitoring.

Conclusion

Systemd timer is a modern alternative to cron.

They offer enhanced functionality, better integration, and superior logging capabilities.

Whether you're managing backups, running maintenance tasks, or automating deployments, systemd timers provide a flexible and reliable solution for scheduling tasks in Linux.

Take the time to explore systemd timers and see how they can simplify task automation in your environment!

If you have any feedback or doubts, do let us know in the comments!
