Kubelet Deep Dive

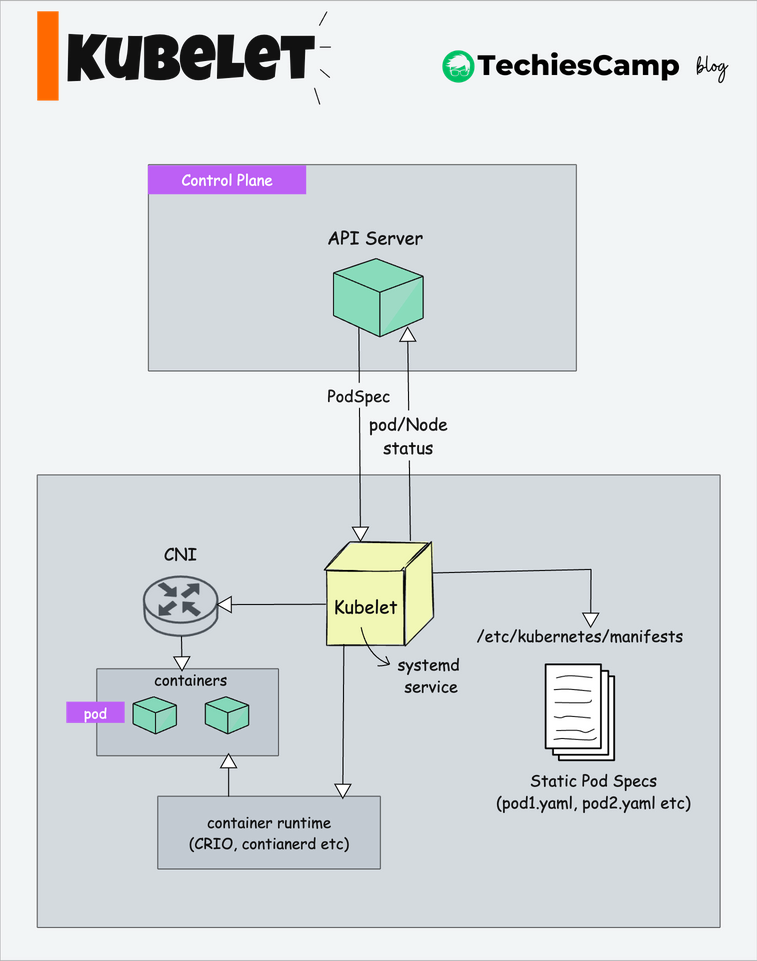

Kubelet is an agent component that runs on every node in a Kubernetes cluster. Unlike other Kubernetes components, Kubelet doesn't run as a container. Instead, it operates as a daemon, typically managed by systemd on the host system.

Core Responsibilities of Kubelet

Kubelet's primary job is to ensure that containers are running in a Pod.

Here's a breakdown of Kubelet's key tasks:

1. Node Registration

Kubelet is responsible for registering worker nodes with the API server.

For example, if you have deployed your own kubeadm cluster, you typically run the node join command from the worker node with API server details and token.

kubeadm join <control-plane-ip>:6443 \
        --token <token> \
        --discovery-token-ca-cert-hash sha256:<hash>

In this process, Kubelet communicates with the API server to register itself. The registration includes sending the node's details (like hostname, IP address, CPU, memory, and operating system) to the API server.

It then continually reports the node’s status (e.g., available resources, health, and running conditions) to the API server. This ensures that the control plane, particularly the scheduler, has an up-to-date understanding of the node's capacity and condition.

As we discussed in the scheduler guide, the scheduler uses the node information provided by the kubelet to make decisions about where to place new pods

2. Pod Management

As we learned in the architecture, Kubernetes follows a design principle where most of the components monitor (or “watch”) the API server to make decisions.

The kubelet is one such component that continuously watches the API server for pod information.

When kubelet finds a pod assigned to the node, it retrieves the podSpec (Pod specification – YAML or JSON) from the API server.

An example podSpec

apiVersion: v1
kind: Pod
metadata:
  name: app-pod
  labels:
    app: app
spec:
  containers:
    - name: app-container
      image: nginx:latest
      ports:
        - containerPort: 80
      resources:
        limits:
          memory: "256Mi"
          cpu: "500m"
        requests:
          memory: "128Mi"
          cpu: "250m"
      env:
        - name: ENVIRONMENT
          value: "production"
      volumeMounts:
        - name: app-storage
          mountPath: /usr/share/nginx/html
  volumes:
    - name: app-storage
      persistentVolumeClaim:
        claimName: my-app-pvc

The podSpec defines the desired state of the pod, which includes the following key aspects:

• The containers that should run inside the pod, including the container image and command to run.
• The CPU and memory limits and requests for each container
• Environment variables, volumes (storage), labels, and probes (such as liveness and readiness checks).

Kubelet then takes action to ensure the pod’s containers are running in the specified state on the node.

3. Container Lifecycle Management

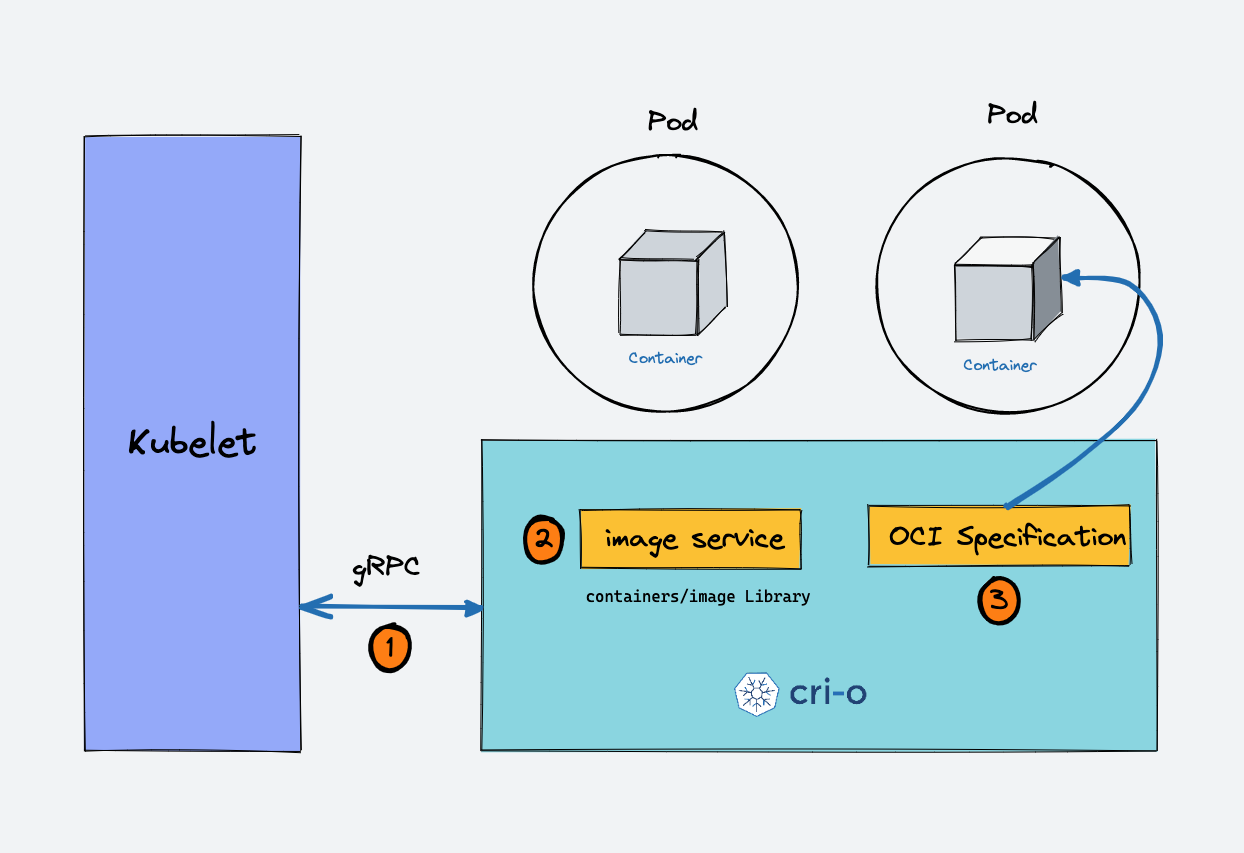

The Kubelet uses CRI to communicate with the container runtime in order to manage containers and pods. Specifically, the Kubelet relies on CRI to create, start, stop, and delete containers, which is essential for managing the pod lifecycle.

CRI also provides APIs for operations like pulling container images, removing images, and getting image status. This helps the Kubelet manage container images effectively.

The Kubelet works to ensure that the actual state of the pod matches the desired state described in the pod specification (podSpec). This includes creating, modifying, or deleting containers as needed.

Additionally, the Kubelet continuously performs readiness and liveness probes, if specified in the podSpec, to monitor the health of the containers. When a pod is deleted, the Kubelet gracefully terminates the containers and releases the associated resources.

4. Volume Management

When deploying a pod that requires persistent storage, you often specify a PersistentVolumeClaim (PVC) in your pod's configuration. This PVC requests storage from a PersistentVolume (PV), which can be backed by external storage solutions like:

• AWS Elastic Block Store (EBS)
• Network File System (NFS)
• Amazon Elastic File System (EFS)

Even though these volumes are created outside the Kubernetes cluster, the pod needs to access them as if they were local storage.

This is achieved by mounting the external volumes onto directories within the node's filesystem where the pod is running.

The Kubelet is responsible for all host-level operations related to volume mounting.

Kubelet uses the CSI (container storage interface) gRPC to configure block volumes.

The Kubelet parses the pod's configuration file (podSpec), which includes volume definitions and mount points.

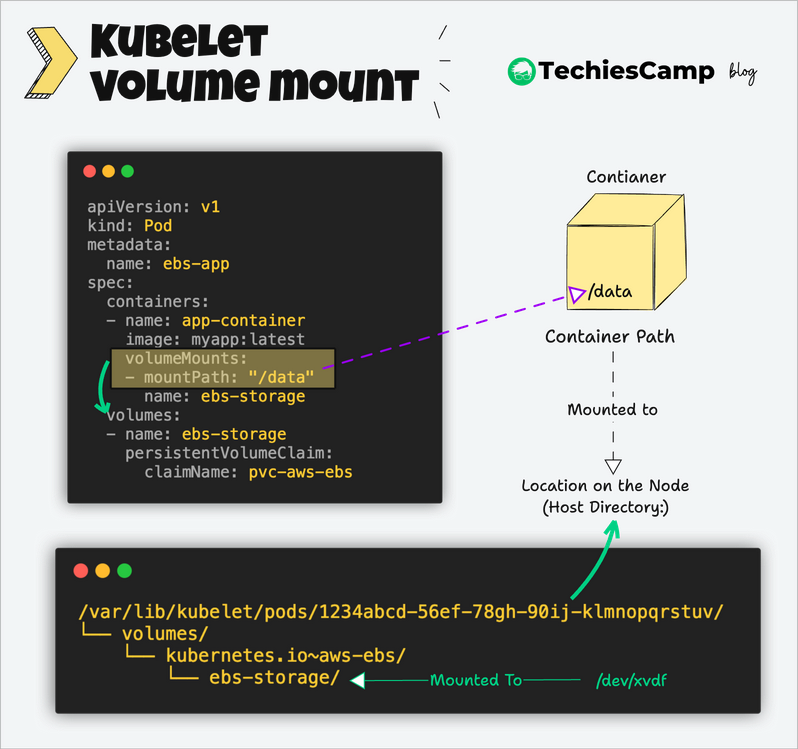

Kubelet mounts volumes by reading pod configurations and creating respective directories on the host for volume mounting.

Kubelet creates the appropriate directory on the host machine (node) where the pod is scheduled to run, such as /var/lib/kubelet/pods/[pod-id]/volumes/kubernetes.io~pvc/[pvc-name].

The Kubelet ensures the container inside the pod has access to the volume by binding the mount point to the container's filesystem at the specified path in volumeMounts.

5. Secrets and ConfigMaps Mounts

When you create ConfigMaps and Secrets and then associate them with a pod using volume mounts, the kubelet reads the ConfigMaps and Secrets from the Kubernetes API and injects them into the pods at runtime.

Secret Management

The kubelet fetches Secrets from the API server when pods on its node need them. It mounts Secrets as files into pods through a tmpfs (RAM-backed filesystem).

The following example shows mounted tmpfs (temporary filesystem) for secret that Kubernetes has set up for a specific pod on a node.

$ mount | grep tmpfs | grep password

root@node02:/var/lib/kubelet/pods/208ef857-e54f-4ceb-a569-64af9cb57994/volumes/kubernetes.io~secret/secret-volume

Also, it automatically updates mounted Secrets when they change

If you want to try it out, you can get the pod ID and the node where the pod is running by using the following commands:

$ kubectl get po <pod-name> -o jsonpath='{.metadata.uid}'

$ kubectl get po -o wide

ConfigMap Management:

The kubelet also mounts ConfigMap data as files into pods and updates the mounted ConfigMap data when changes occur.

Here is an example of a mounted ConfigMap on a node for a pod:

$ ls /var/lib/kubelet/pods/208ef857-e54f-4ceb-a569-64af9cb57994/volumes/kubernetes.io~configmap/config-volume

welcome-message

6. Logging and Execution

When you run commands like kubectl logs and kubect exec, kublet plays a key role.

Kubelet exposes an HTTP endpoint to stream logs and provide exec sessions for clients.

First lets understand how kubelet is related to pod logs. Lets say you want to get the logs of a pod named db-pod.

kubectl logs db-pod

Here is what happens.

1. kubectl logs command constructs an API request to the Kubernetes API server to retrieve logs from the db-pod
2. The API server looks up to determine on which node it is running.
3. The API server forwards the log request to the Kubelet running on the node hosting db-pod.
4. The Kubelet uses the container runtime (e.g., Docker, containerd) to access the logs of the container. It reads the log files or streams the logs in real-time. This is where Kubelet's HTTP endpoint for streaming logs comes into play.
5. The Kubelet sends the logs back to the API server, which then relays them to kubectl, displaying them in the terminal.

Now, let's understand how Kubelet is related to executing commands inside a pod. Let's say you want to start an interactive shell session in a pod named db-pod.

kubectl exec -it db-pod -- /bin/bash

Here is what happens:

1. The kubectl exec command constructs an API request to the Kubernetes API server to execute the /bin/bash command inside db-pod.
2. The API server looks up db-pod in its datastore to determine on which node it is running.
3. The API server uses its API proxy functionality to forward the exec request to the Kubelet on the node hosting db-pod. This proxying allows communication with the Kubelet without exposing it directly, enhancing security.
4. The Kubelet receives the proxied request from the API server.
5. It uses the container runtime (e.g., Docker, containerd) to execute the specified command (/bin/bash) inside the container.
6. It sets up a streaming session to handle the input and output streams between your terminal and the container. This involves multiplexing stdin, stdout, and stderr over a single connection using protocols like SPDY or WebSockets.
7. The Kubelet streams the command's output back to the API server via the API proxy.
8. The API server then relays this data to your kubectl client, allowing you to interact with the shell inside the container directly from your terminal.

7. Status Reporting

The kubelet in Kubernetes is responsible for managing the containers on each node, and part of its role is to monitor and report the status of nodes and pods back to the Kubernetes API server.

For node-level metrics collection, the kubelet gathers resource usage statistics directly from the operating system and the hardware of the node itself.

For container metrics, the kubelet uses tools like cAdvisor (Container Advisor), which is integrated directly into kubelet.

cAdvisor collects detailed resource usage and performance metrics for each container, tracking:

1. CPU usage
2. Memory usage
3. Network traffic
4. Disk usage

The kubelet then sends these aggregated node-level metrics to the Kubernetes API server. This makes the data available to other Kubernetes components for scheduling, scaling, and health monitoring.

If you install the metrics server component, it uses the resources metrics exposed nby inividual kubelets on each node.

8. Networking

Kubelet plays several important roles in Pod networking.

Kubelet interacts with the Container Network Interface (CNI) plugins. When a new Pod is scheduled, kubelet calls the CNI plugin to:

1. Allocate an IP address for the Pod
2. Set up the network namespace
3. Configure network interfaces

Besides basic networking, kubelet also takes care of setting up DNS for the Pod. Specifically, kubelet configures the /etc/resolv.conf file inside the Pod to make sure the Pod can use:

1. Cluster DNS server
2. Search domains (for example, resolving just service-name instead of service-name.namespace.svc.cluster.local).
3. DNS options

Beyond the API Server: Other Sources of PodSpecs

Other than PodSpecs from the API server, kubelet can accept podSpec from other sources:

1. Files
2. HTTP endpoints
3. HTTP servers

A classic example of podSpec from a file is Kubernetes static pods.

Static Pods

Static pods are pods controlled directly by Kubelet, not the API servers.

This means you can create pods by providing a pod YAML location directly to the Kubelet component.

Here is a real-world example use case of the static pod.

While bootstrapping the control plane, kubelet starts the api-server, scheduler, and controller manager as static pods from podSpecs located at /etc/kubernetes/manifests

What happens when Kubelet is down?

When the kubelet on a node is down, it disrupts the management and monitoring of containers on that specific node.

Here’s what typically happens.

1. The node and pod status updates to the Kubernetes API server stop, and the node appears unresponsive to the control plane.
2. After a set period (usually 40 seconds by default --node-monitor-grace-period parameter in the kube-controller-manager), the Kubernetes control plane marks the node as NotReady.
3. Any running pods on that node will continue to operate as long as the containers themselves are running, but Kubernetes won’t be able to manage or monitor them.
4. Readiness and liveness probes, which are used to check the health of containers, rely on the kubelet. When it’s down, these checks stop running, making it difficult for Kubernetes to determine the actual status of applications on the node.
